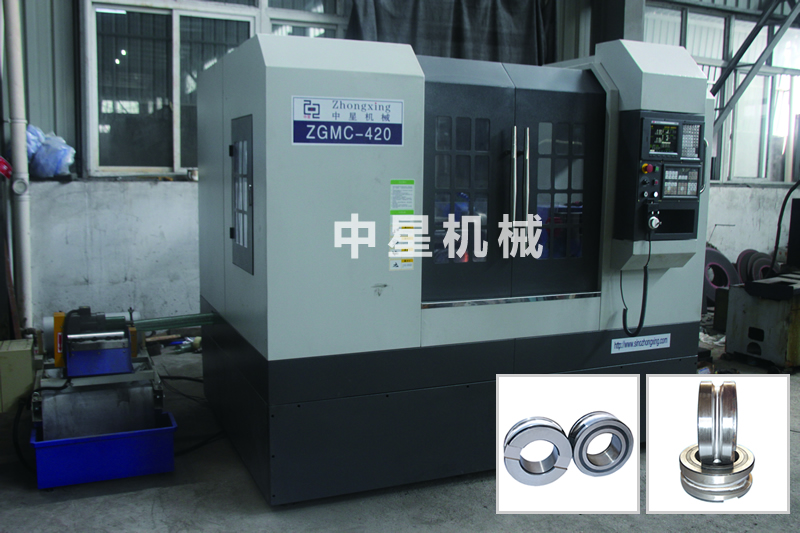

GMC-420 NC Roller Grinding Machine

Cold Pilger mill

his machine specializes in grinding the rollers of LG & LD series Cold Pilger Mill.and it can make freewill curve for different diameters from Φ120 to Φ420. It can also grind the curve roller surface of paraboloid.

Technical Parameter of ZGMC-420 NC Roller Grinding Machine

Model	ZGMC-420
Max.Grinding Diamater	Φ420mm
Min.Grinding Diameter (under Max.grinding wheel)	Φ120mm
Center Height	1100mm
Max.Bearing Capacity of Center	120kg
Max.Working Weight	150kg
Manual Shift Amount of Tail Bracket Center	180mm
Z-AXIS for Rational Speed	5-94rotation/min
Y-AXIS for Feed Speed of Grinding Carriage	1-9000mm/min
X-AXIS for Cross Feed Speed of Grinding Carriage	1-9000mm/min
Min.NC Resolution Ratio	0.001mm
Grinding Wheel Specification	Φ300x10-40xΦ75mm
Max.Line Speed of Grinding Wheel	35m/sec
Coolant Tank Flow	22L/min
Total Power	11kw
Grinding Carriage Motor Power	3kw
