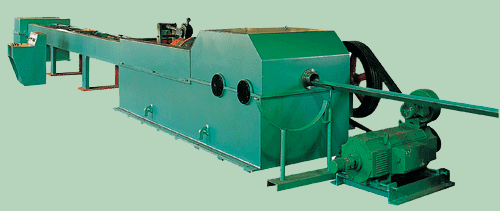

LD-80 Cold Pilger Mill

Cold Pilger mill

Send us an email：zhongxing@sinozhongxing.com，sales@sinozhongxing.com or call us directly to practice：Whatsapp:+86-13587597887

LD-80 Three-roller Cold Pilger Mill can make Φ30-108mm ferrous and nonferrous metal seamless pipes with high precision.

Technical Parameter of LD-30 Cold Pilger Mill

Model		LD-80
Outer Diameter of Blank Tube	（mm）	33-111
Thickness of Blank Tube	（mm）	≤7
Length of Blank Tube	（mm）	2000-6000 2000-8000
Outer Diameter of Finished Tube	（mm）	30-108
Thickness of Finished Tube	（mm）	0.7-6
Head Working number of strokes	（次/min）	50-90
Run Length of Head	（mm）	601
Feed-rate	（mm/次）	1-10
Rotary Angle	（°/次）	36-72
Level of Rolling-line	（mm）	850
Model of Main Motor	（m/h）	Z4-225-11
Power of Main Motor	（kw）	75
Rotary Speed of Main Motor	（r/min）	1000

Feeding rotary has hydraulic driving and DC motor driving for option。And mandrel chuck has manual,hydraulic,ways for option.

(If any change in design parameters,we will give extra notification.)
