Pulling Machine

Cold Pilger mill

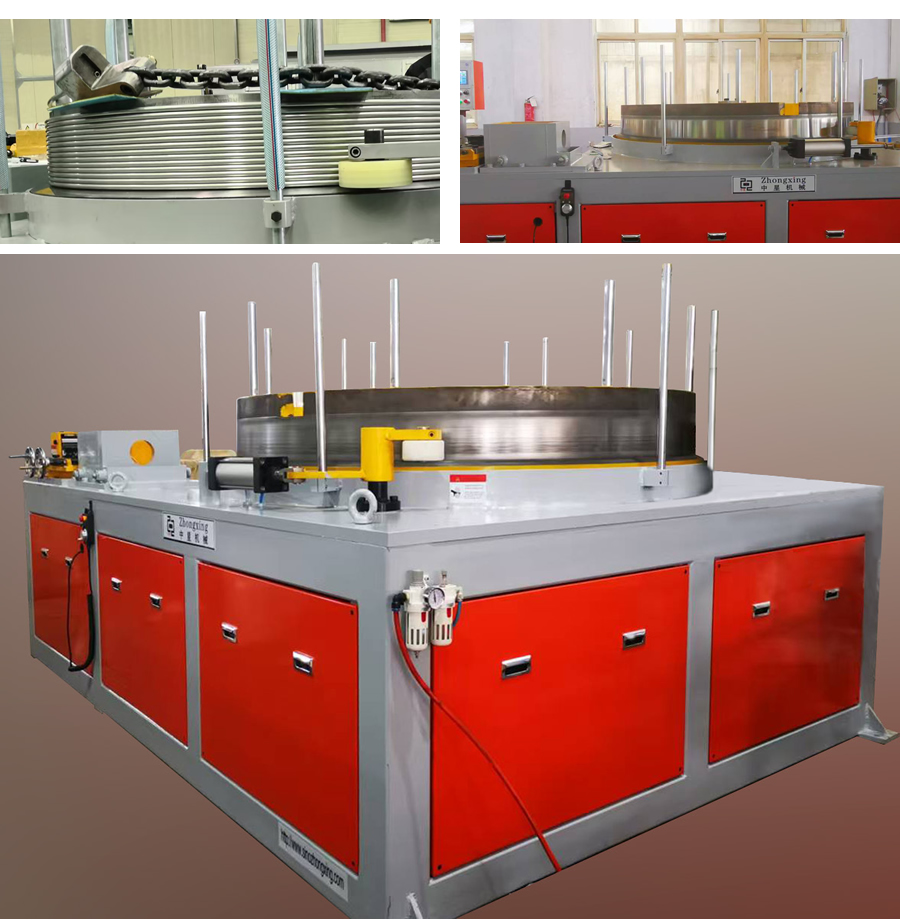

Composition and characteristics of disk pulling machine:

Pan pulling machine is a metallurgical equipment specialized in producing special stainless steel pipes, carbon steel pipes, alloy steel pipes, and various colored pipes. The basic production process is to reduce the diameter and wall of the capillary or intermediate tube through demoulding and moving core rods, or empty drawing. It is a specialized equipment used to produce high-precision, high-strength and extra long metal pipes.

Technical parameters of inverted disc puller：

Number	Name	Unit	PL150-15T	PL200-25T
1	Mother Tube OD	mm	Φ10-Φ28	Φ28-Φ38
2	Mother Tube Thickness	mm	1-3	1-3.5
3	Finished Tube OD	mm	Φ6-Φ20	Φ16-Φ30
4	Finished Tube Thicknes	mm	0.5-2.5	0.5-3
5	Pulling diameter	mm	1500	2000
6	Max.rolling Force	KN	150	200
7	Drawing Speed	m/Min.	0-10（无级调速）	0-10（无级调速）
8	Main motor power	KW	37	55
