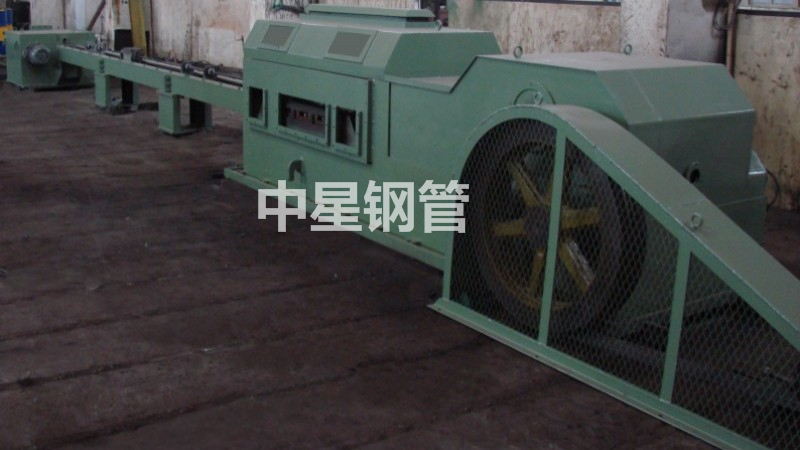

LG-20-H Cold Pilger Mill

Cold Pilger mill

LG-20-H Double-roller Cold Pilger Mill can make Φ10-25mm ferrous and nonferrous metal seamless pipes with high precision and it has function for reduction of wall capacity and high production rate.

Technical Parameter of LG-20-H Cold Pilger Mill

Model		LG-20-H
Outer Diameter of Blank Tube	（mm）	16-42
Thickness of Blank Tube	（mm）	1.2-5
Length of Blank Tube	（mm）	1500-5000
Outer Diameter of Finished Tube	（mm）	10-25
Thickness of Finished Tube	（mm）	0.8-4
Route Length of Working Frame	（mm）	565
Pitch Circle Diameter of Working Gear	（mm）	189/196/203
Frame Working Number of Strokes	（Freq./min）	50-110
Roller Diameter	（mm）	210
Level of Rolling-line	（mm）	830
Feed Range	（mm）	3-10
Rotary Angle	（°/Freq.）	36-72
Model of Main Motor		Z4-160-31
Power of Main Motor	（KW）	30
Rotary Speed of Main Motor	（R/Min.）	1500

Feeding rotary has hydraulic driving,DC motor driving and Servo Motor driving for option

(If any change in design parameters,we will give extra notification.)
